M12 Ethernet
Common industrial circular Ethernet options for defined equipment interfaces.
03 · Extended connectivity
Industrial Ethernet Connectivity
For machine and industrial data links where connector format, shielding, cable category and pin assignment must be clearly coordinated.
M12 to RJ45
Cable assemblies that bridge industrial circular interfaces and common Ethernet ports.
Configuration records
Coordinate coding, shielding, cable category, length and end combinations.
Product starting points
Common Configurations
Start with the configuration that looks closest to your requirement. Final connector, cable, length, pin assignment and application details can be confirmed before quotation.
C01Industrial Ethernet
M12 to RJ45 Industrial Ethernet Cable
Machine or device network connection
- M12 Ethernet side
- RJ45 device / network side
- Industrial cable assembly
- Custom length available
C02Industrial Ethernet

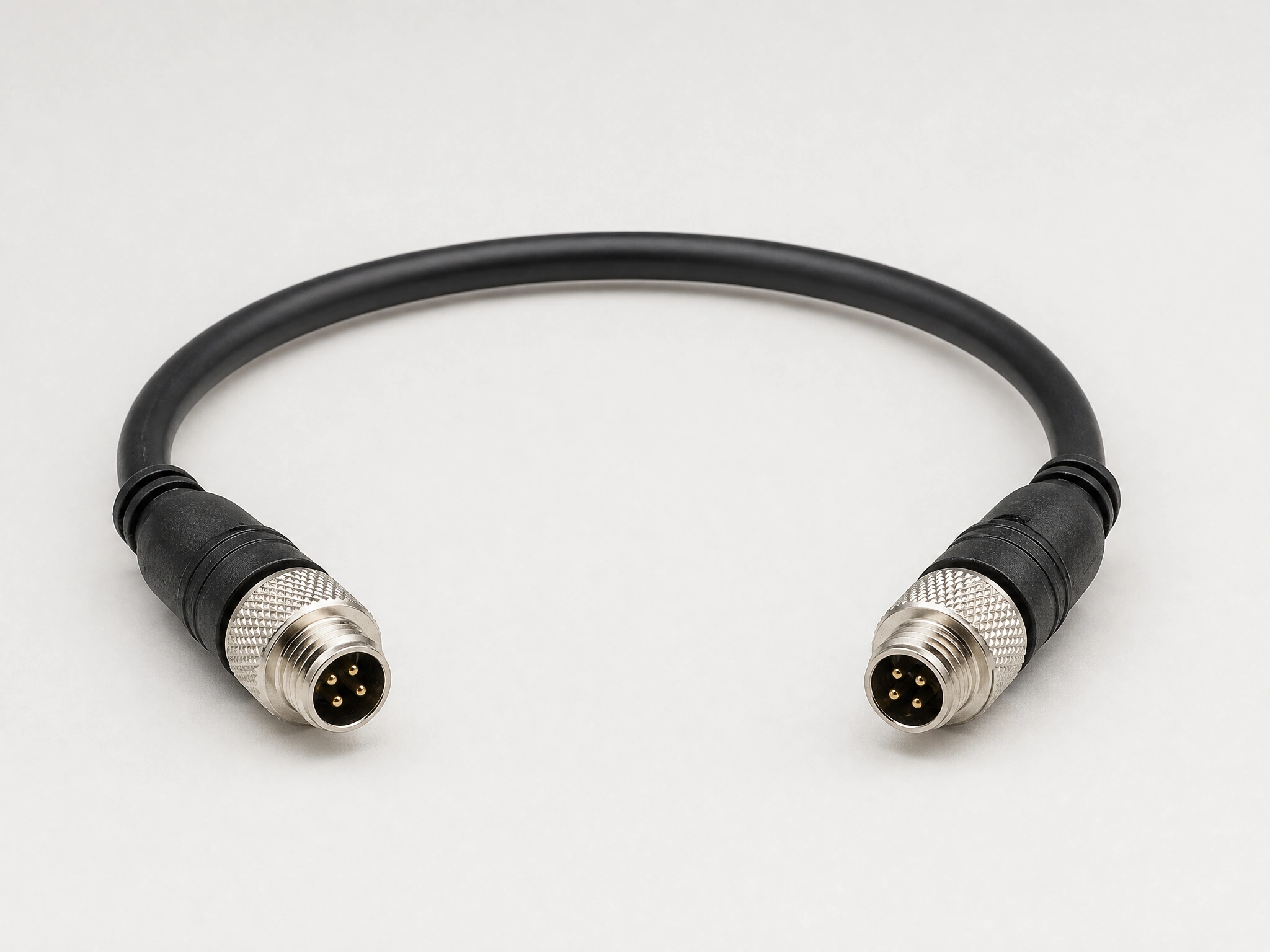

M12 D-Coded Ethernet Cable Assembly
Industrial data connection for machine-side networking
- M12 D-coded
- Ethernet application
- Industrial cable
- Common project configuration
C03Industrial Ethernet

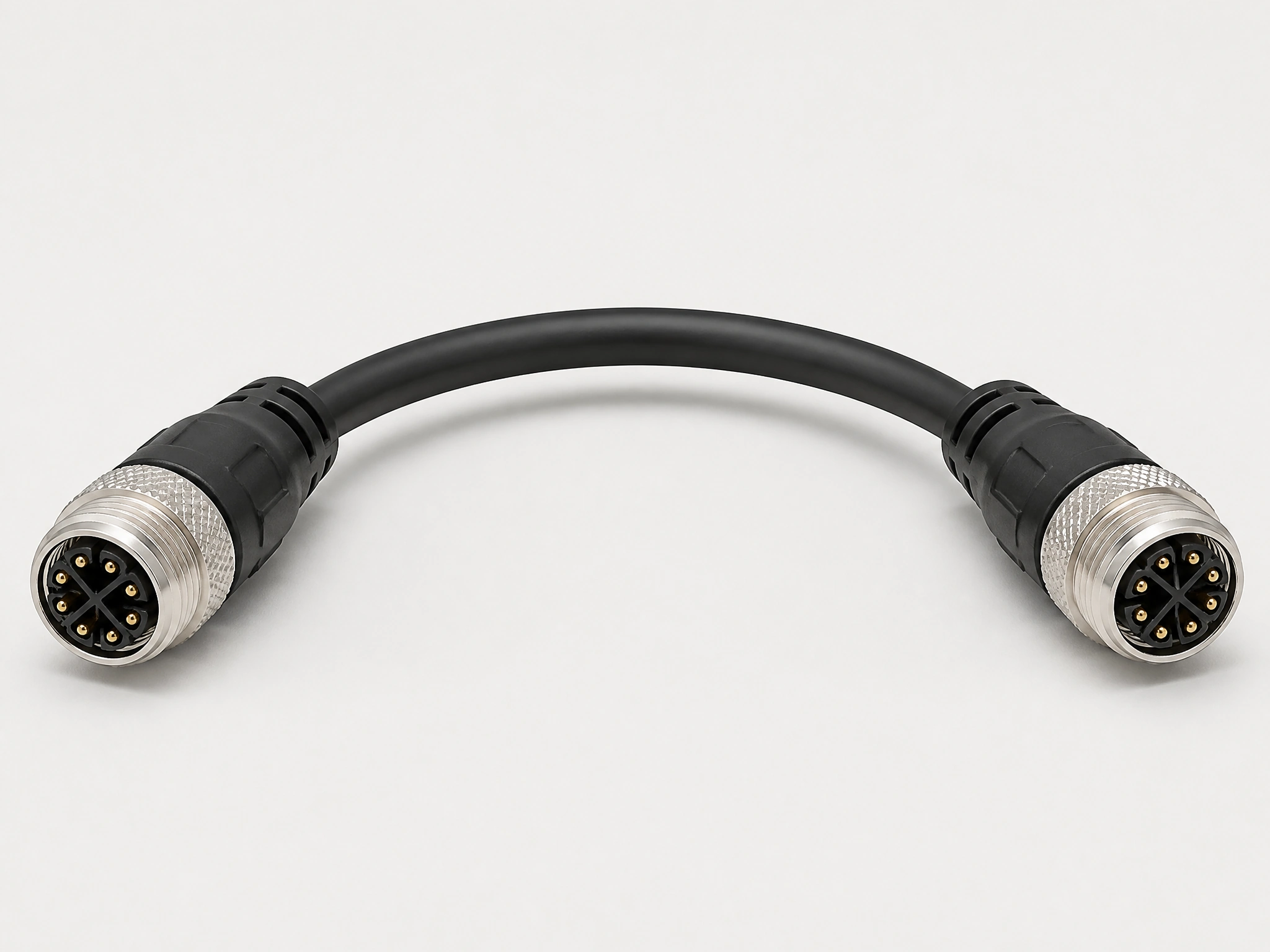

M12 X-Coded Ethernet Cable Assembly
Higher-performance industrial Ethernet configuration
- M12 X-coded
- Industrial Ethernet
- Cable assembly
- Custom configuration available
C04Industrial Ethernet

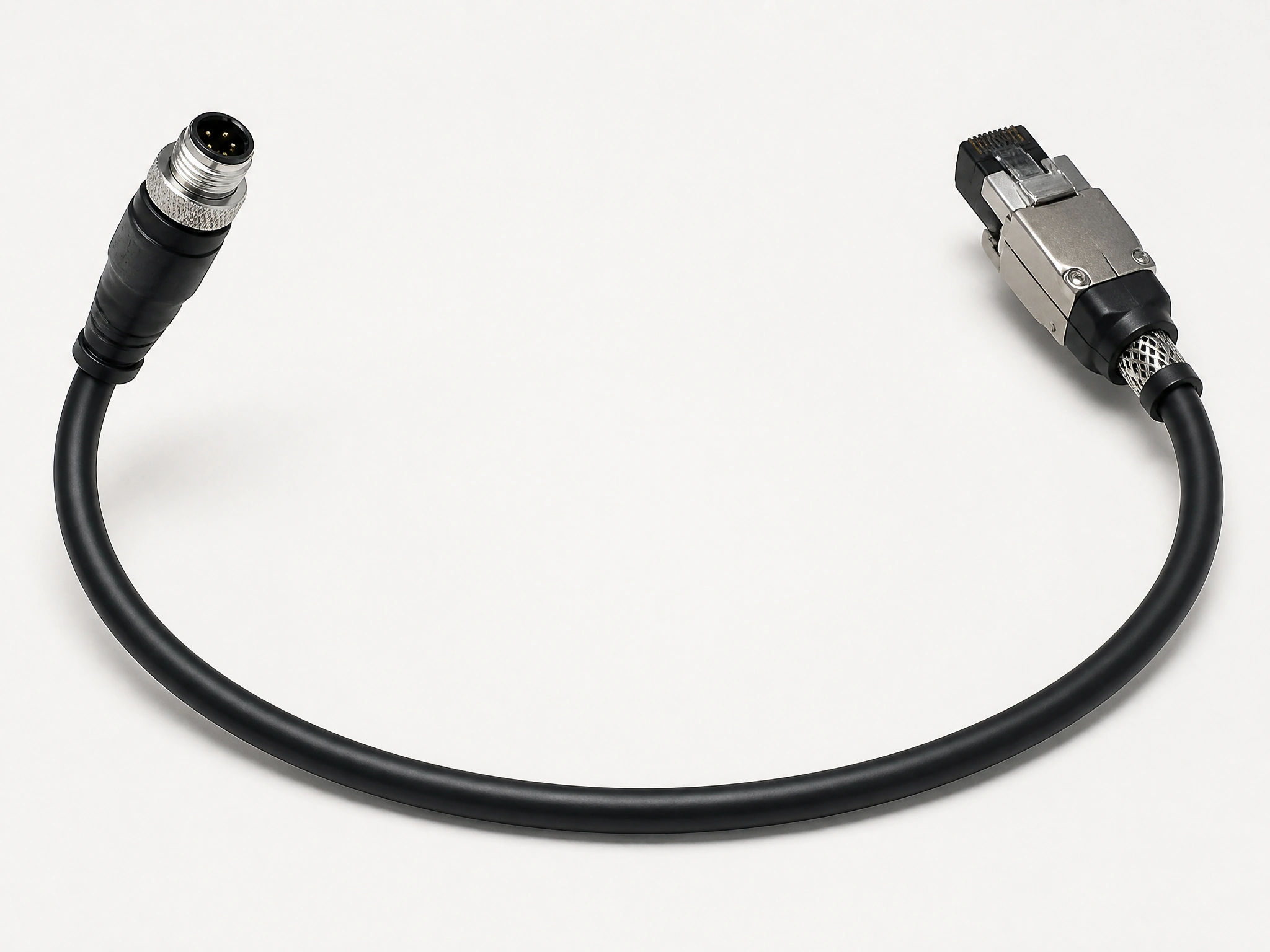

Custom-Length Ethernet Assembly
Defined equipment connection
- Connector ends confirmed
- Pin assignment confirmed
- Cable requirement confirmed
- Custom length available
Easy for buyers
Quick Specifications
Use these common options to identify a starting configuration. Exact ratings and construction depend on the selected configuration.
| Connector | M12 / RJ45 |
|---|---|
| M12 coding | D-coded / X-coded options |
| Ends | M12-M12 / M12-RJ45 |
| Cable length | Standard / custom |
| Shielding | Application-dependent |
| Environment | Industrial indoor / protected outdoor |
Detailed when engineers need it
For Engineers
- Data requirement
- Speed and network requirement to be confirmed
- Cable category
- Selected against application and interface
- Shield termination
- Defined with connector and cable construction
- Pin assignment
- Confirmed against equipment documentation
- Jacket
- PVC, PUR or other available construction
- Testing
- Requirements coordinated before sample approval
Values are confirmed against the selected product, drawing and application—not assumed from a generic family description.
Typical applications
Where this connection appears.
Send the equipment interface, existing cable model or pinout so the data connection can be checked correctly.
Industrial camerasMachine networksRemote I/OControl cabinetsVision systemsAutomation equipment
Before ordering
What to confirm for an M12-to-RJ45 cable
M12 and RJ45 describe the connection formats, but the correct assembly also depends on the equipment interfaces and cable requirement.
M12 interface
Confirm the coding, gender and pin arrangement shown in the equipment documentation.
RJ45 end
Confirm the required plug, protected plug or panel-side arrangement.
Cable construction
Provide the required cable category, shielding, jacket and installation environment where known.
Length and reference
Send the finished length plus an existing model, drawing or equipment pinout.
Start with what you have
A part number. A photo. A drawing.
Or simply tell us what you know.
We will review the available information and identify the specifications that still need confirmation.
Send What You Know
