Finished assemblies
Straight or angled molded connector ends with common cable lengths and jacket options.
02 · Core product
Molded Sensor Cables
Coordinate connector, cable, length and pinout in one defined assembly—from a common configuration or an existing cable reference.
Single- or double-ended
Pigtails, extension cables and connector-to-connector cable assemblies.
Defined customization
Length, cable material, label, pinout and packaging can be coordinated when specified.
Product starting points
Common Configurations
Start with the configuration that looks closest to your requirement. Final connector, cable, length, pin assignment and application details can be confirmed before quotation.
C01Molded Cable Assembly
M12 4-pin Male Straight — 2m
Standard sensor cable
- M12
- 4-pin common option
- Male
- Straight
- 2m common length
C02Molded Cable Assembly
M12 4-pin Female Straight — 2m
Sensor / actuator connection
- M12
- 4-pin common option
- Female
- Straight
- PVC / PUR options
C03Molded Cable Assembly
M12 4-pin Male Angled — 2m
Limited installation space
- M12
- 4-pin common option
- Male
- Angled
- 2m common length

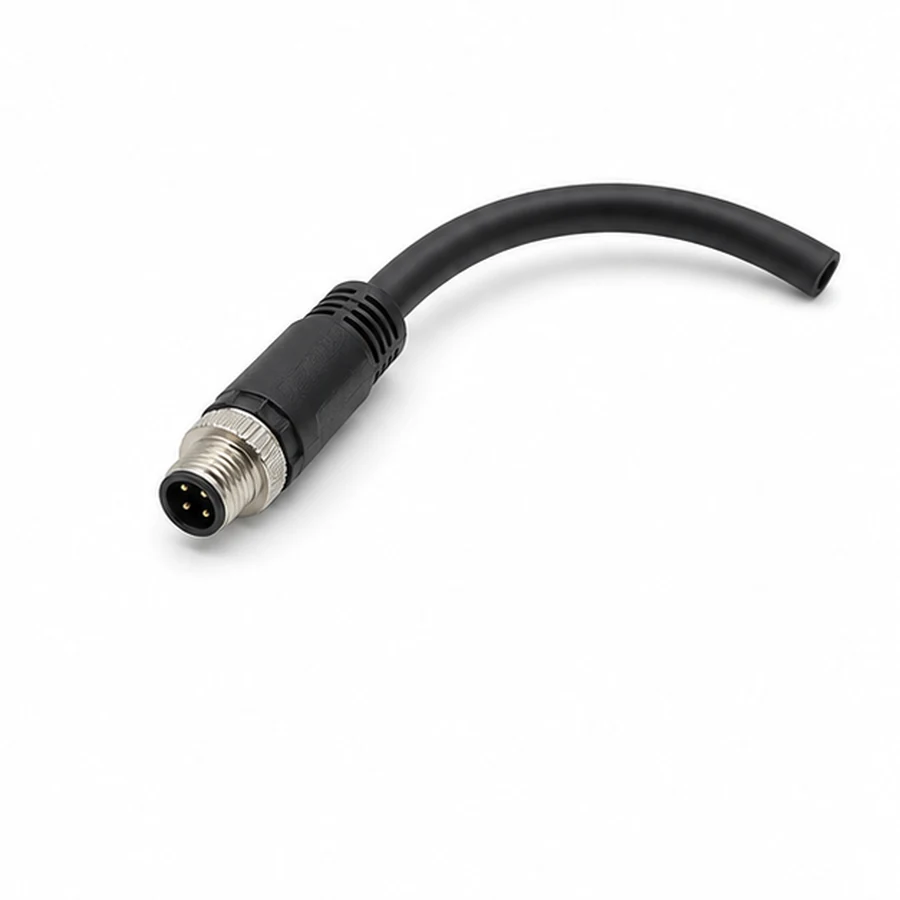

C04Compact Sensor Cable
M8 3/4-pin Molded Cable
Compact sensor application
- M8
- 3 / 4-pin options
- Straight / angled
- Standard / custom length
- PVC / PUR options

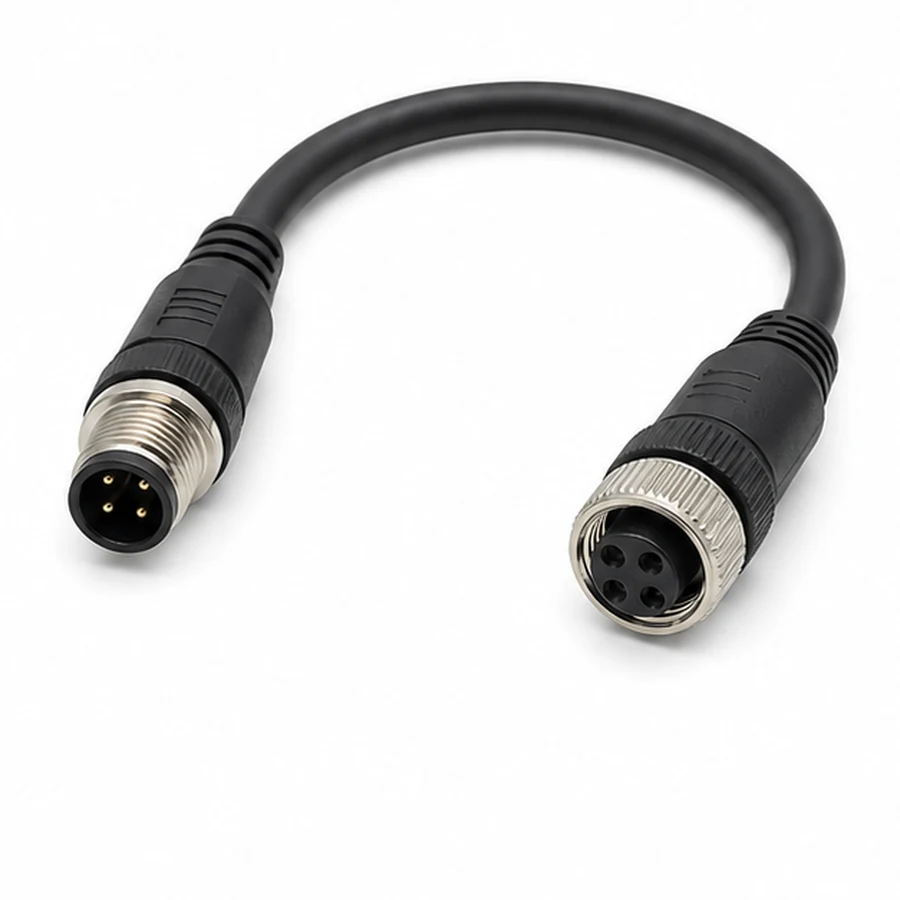

C05Molded Cable Assembly
Double-Ended Sensor Cable
Device-to-device connection
- M8 / M12 options
- Male / female ends
- Straight / angled
- Standard / custom length
- Pinout confirmed

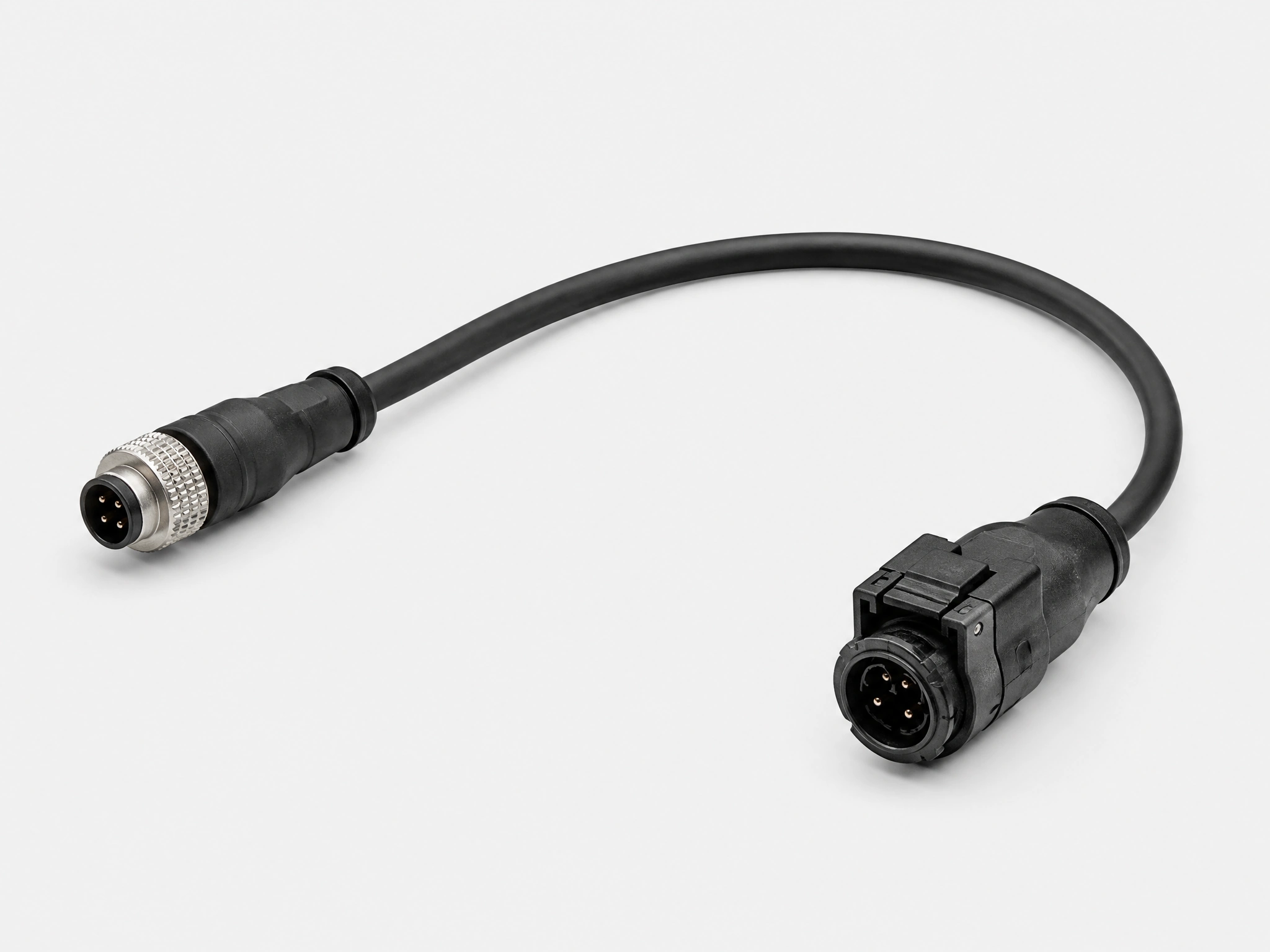

C06Defined Configuration
Custom Cable Assembly
Custom connector / pinout / cable / length
- Connector combination
- Pinout confirmed
- Cable selected
- Custom length
- Label options
Easy for buyers
Quick Specifications
Use these common options to identify a starting configuration. Exact ratings and construction depend on the selected configuration.
| Connector | M8 / M12 |
|---|---|
| Orientation | Straight / angled |
| Ends | Single-ended / double-ended |
| Cable length | 1m / 2m / 5m / custom |
| Cable | PVC / PUR |
| Protection | IP67 / IP68 options |
Detailed when engineers need it
For Engineers
- Conductors
- Core count and conductor size by requirement
- Shielding
- Unshielded or shielded where applicable
- Jacket
- Material, color and environmental requirement
- Cable OD
- Confirmed against selected connector and cable
- Pinout
- Standard or customer-defined after confirmation
- Marking
- Defined labels or identification where available
Values are confirmed against the selected product, drawing and application—not assumed from a generic family description.
Typical applications
Where this connection appears.
A photo of the connector ends plus the cable length is often enough to begin.
Machine sensorsRobotics peripheralsConveying equipmentPackaging machinesProcess equipmentDistributed I/O
Quote preparation
What information helps us quote an M12 cable assembly
Start with the connector ends and cable length. The remaining construction details can then be confirmed against the application or an existing sample.
Connector ends
Identify M8 or M12, pin count, gender and straight or angled orientation at each end.
Cable length
Provide the finished length and whether a standard 1m, 2m or 5m option is acceptable.
Cable requirement
Share any known PVC, PUR, shielding, color or environmental requirement.
Approval reference
A current part number, photo, drawing, pinout or physical sample reduces assumptions.
Start with what you have
A part number. A photo. A drawing.
Or simply tell us what you know.
We will review the available information and identify the specifications that still need confirmation.
Send What You Know
