M8 / M12 Sensor Connectivity
Start with the connection format you know. We can help coordinate the remaining details before samples or pricing.
Practical clarification
Coordinate coding, contact count, gender, orientation, termination and environmental needs.
Repeat-ready records
Keep approved specifications, labels and packaging details aligned for repeat sourcing.
Product starting points
Common Configurations
These are common starting configurations for industrial sensor and actuator applications. Final coding, pin assignment, cable and electrical requirements can be confirmed before quotation.
C01Sensor / Actuator Connectivity
M12 A-coded 4-pin Male Straight
Sensor / actuator connection
- M12
- A-coded
- 4-pin
- Male
- Straight
C02Sensor / Actuator Connectivity
M12 A-coded 4-pin Female Straight
Sensor / actuator connection
- M12
- A-coded
- 4-pin
- Female
- Straight
C03Sensor / Actuator Connectivity

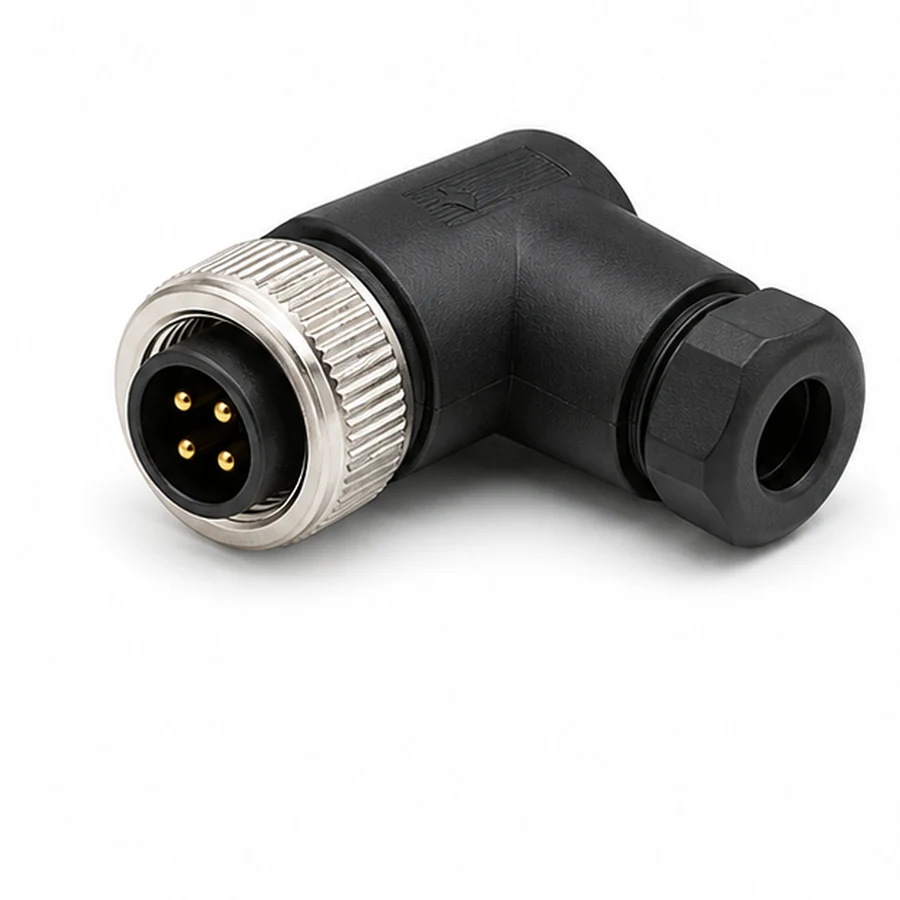

M12 A-coded 4-pin Male Angled
Compact machine installation
- M12
- A-coded
- 4-pin
- Male
- Angled
C04Panel Connectivity

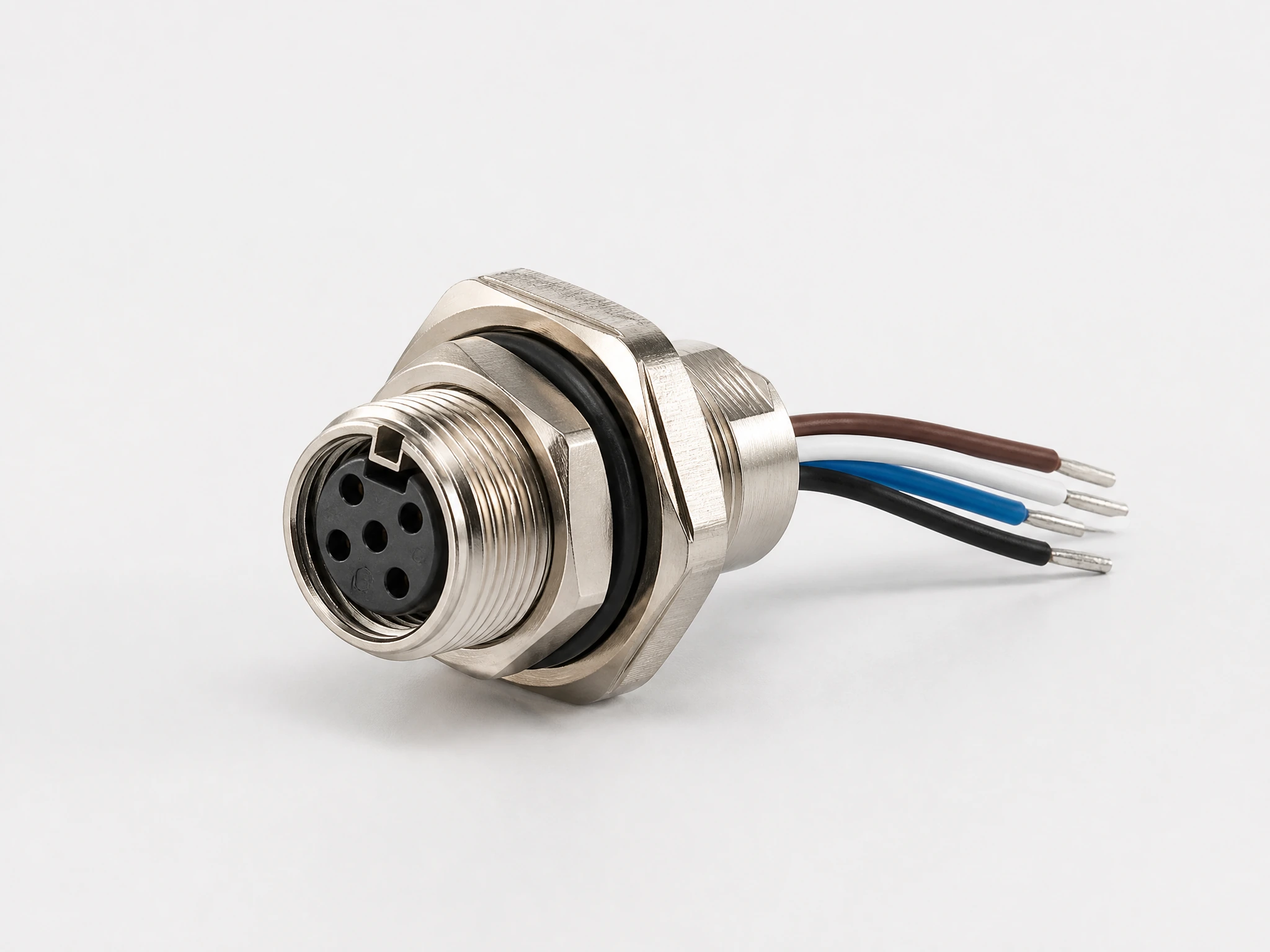

M12 Panel Receptacle
Panel / equipment connection
- M12
- Panel format
- Male / female options
- Coding confirmed
- Pin count confirmed
C05Compact Sensor Connectivity

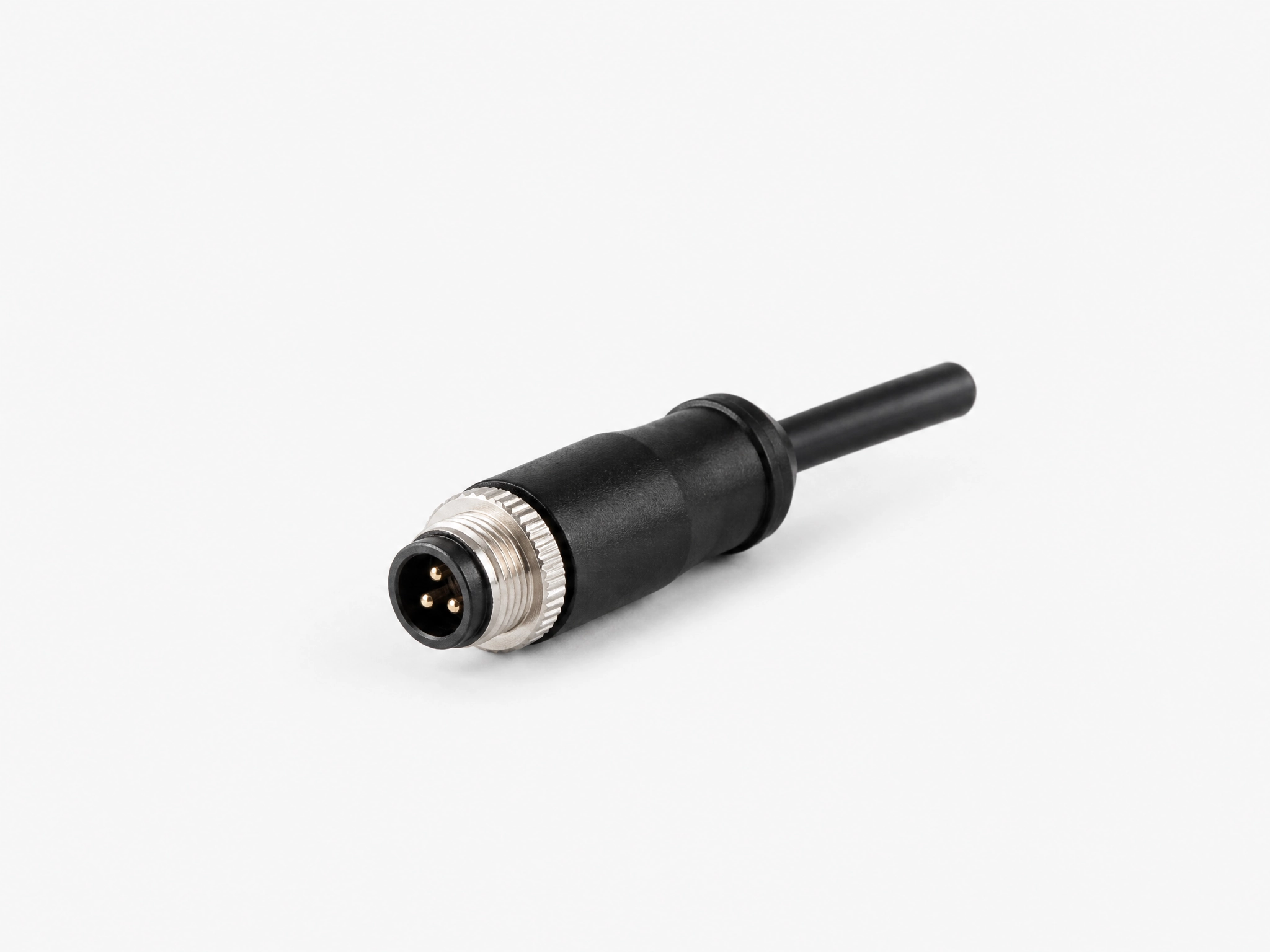

M8 3-pin Sensor Connector
Compact sensor applications
- M8
- 3-pin
- Male / female options
- Straight / angled
- Termination confirmed
C06Compact Sensor Connectivity

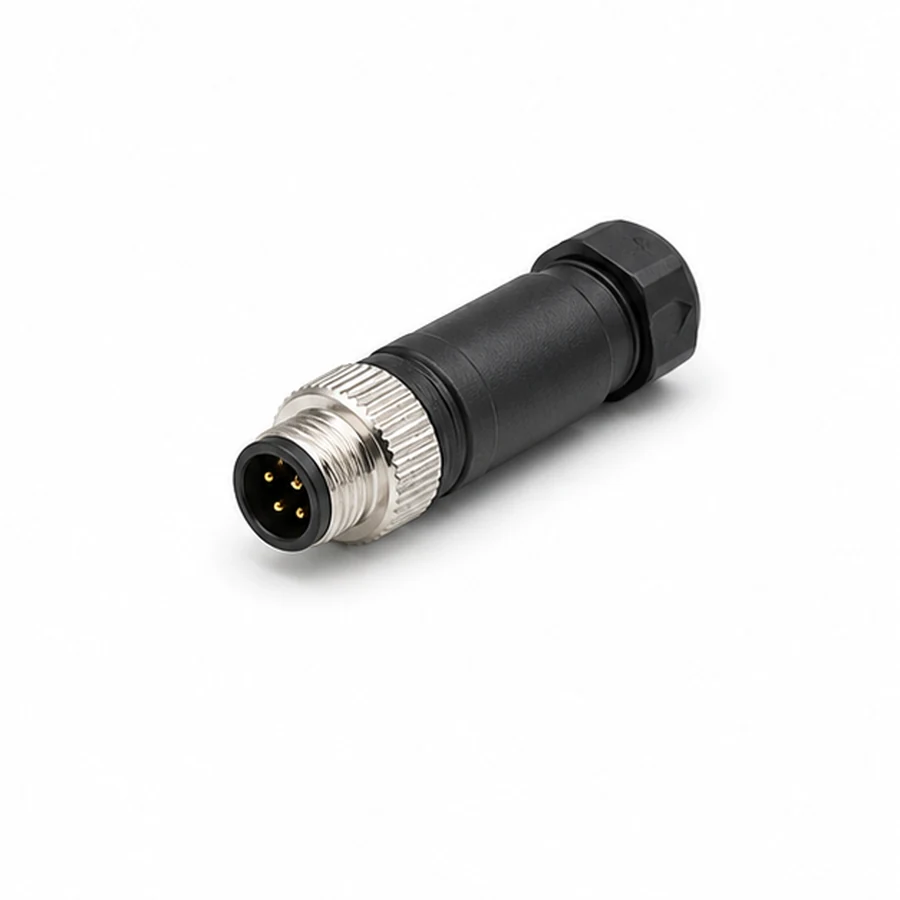

M8 4-pin Sensor Connector
Sensor / actuator applications
- M8
- 4-pin
- Male / female options
- Straight / angled
- Termination confirmed
Easy for buyers
Quick Specifications
Use these common options to identify a starting configuration. Exact ratings and construction depend on the selected configuration.
| Connector | M8 / M12 |
|---|---|
| Contacts | 3 / 4 / 5 / other |
| Gender | Male / female |
| Orientation | Straight / angled |
| Termination | Field-wireable / panel / cable |
| Protection | IP67 / IP68 options |
Detailed when engineers need it
For Engineers
- Coding
- A, B, D, X and other defined requirements
- Electrical
- Rated voltage and current by selected configuration
- Contacts
- Contact material and plating to be confirmed
- Environment
- Temperature, sealing and material requirements
- Pin assignment
- Confirmed against drawing or customer requirement
- Approval
- Final suitability subject to application review
Values are confirmed against the selected product, drawing and application—not assumed from a generic family description.
Typical applications
Where this connection appears.
Have a current connector, drawing or sensor model? Send it and we will start from there.
Sensors and actuatorsMachine I/OFactory automationControl cabinetsMaterial handling equipmentIndustrial instruments
Buyer checklist
How to identify an M8 or M12 connector
A few visible details usually narrow the product family quickly. If any item is unclear, a front and side photo can be used as the starting reference.
Connector size
Confirm M8 or M12 from the thread or body size, or share a photo beside a ruler.
Contacts and gender
Count the visible pins or sockets and note whether the mating face is male or female.
Body direction
Straight bodies suit open cable routes; angled bodies are often chosen where installation space is limited.
Quote reference
Send the current part number, connector photos, drawing, application and expected quantity.
Start with what you have
A part number. A photo. A drawing.
Or simply tell us what you know.
We will review the available information and identify the specifications that still need confirmation.
Send What You Know
